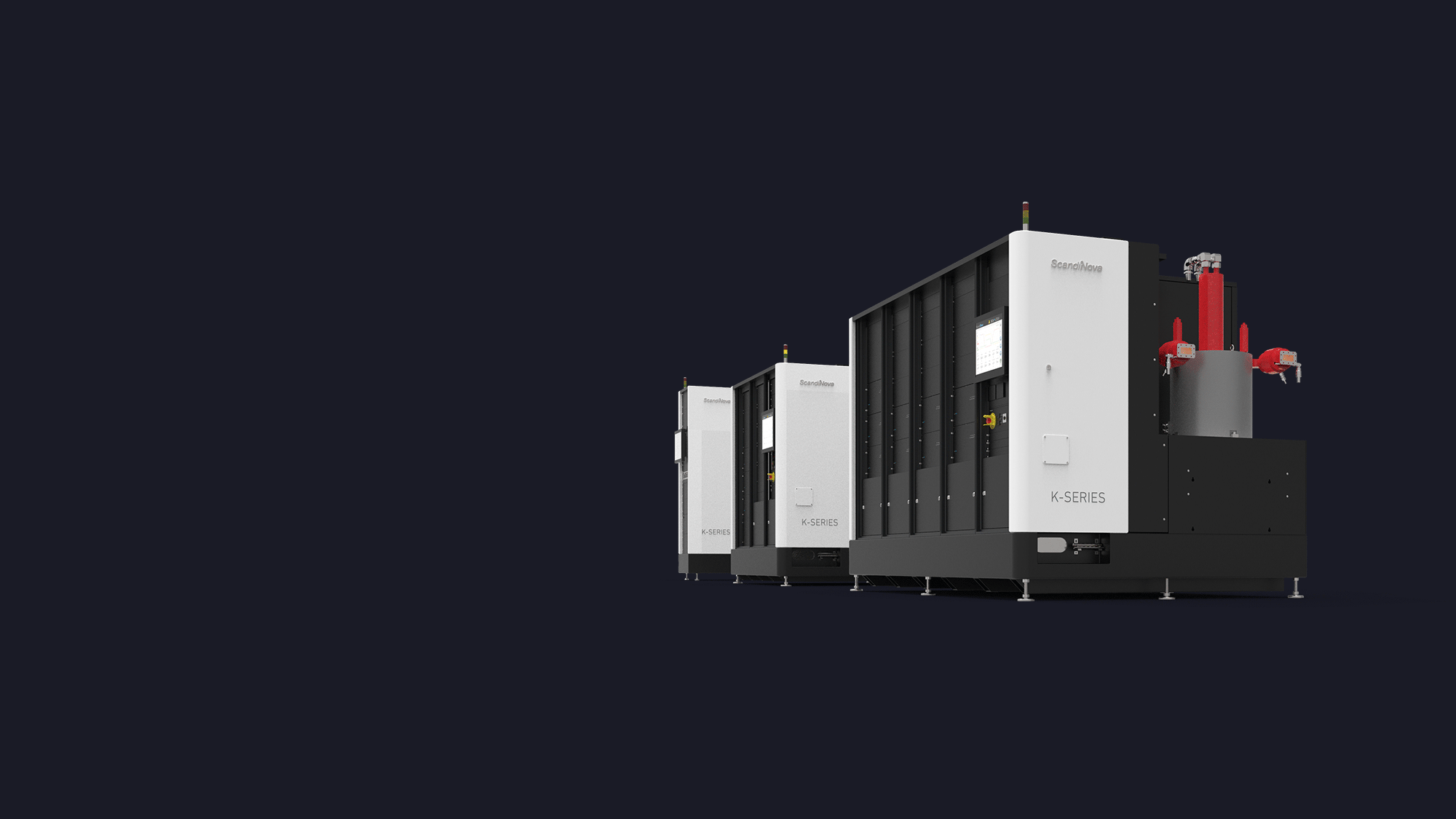

K-Series

Klystron based RF units.

Primarily powering high-voltage particle accelerators, their world-leading performance makes K-Series the first choice of leading research institutes around the world. Several models also find use in radiotherapy and industrial applications.

Up to 100 MW RF Peak Power
World-leading pulse to pulse stability – down to 8 ppm
Fits most klystrons on the market, from suppliers such
as Canon, Thales, CPI, Toriy, SLAC, and L3

CompanyName K-series contains a range of klystron based RF Units with high reliability and performance, a compact design, and low energy consumption. The RF Units utilize ScandiNova’s unique solid-state pulsed power technology, integrated with different types of Klystrons, usually operating in the RF Peak Power range 3-100 MW. The RF Units have extended diagnostics and features, and are
easy to install and operate. They contain few consumables and require minimal maintenance.

Questions about our K-series? Contact us!

K100

RF peak power: 3 – 10 MW
RF average power: 10 kW (max)
Pulse voltage: 115 – 190 kV
Pulse current: 90 – 140 A

Подробнее

Different models for your Peak and Average Power

K-series range Overview

Thanks to our modular design, we can offer RF units that handle a wide range of loads and needs all the way to a RF peak power level of 100 MW! Each model has a flexible range of peak/average power to meet your specification, and also fits most klystron models on the market. Find out more about each model above!

CompanyName K-series

For a wide range of loads and needs, up to 100 MW RF Peak power.

RF units with Modular Design.

Standard RF Unit include:

Modulator
- Capacitive Charging Power Supply
- Filament power supply
- Switch Units
- Pulse transformer
- Control system
- Cooling system
Klystron
Solenoid & Power Supply
Ion Pump Power Supply
Low level RF Amplifier
RF diagnostics

CompanyName K-series
